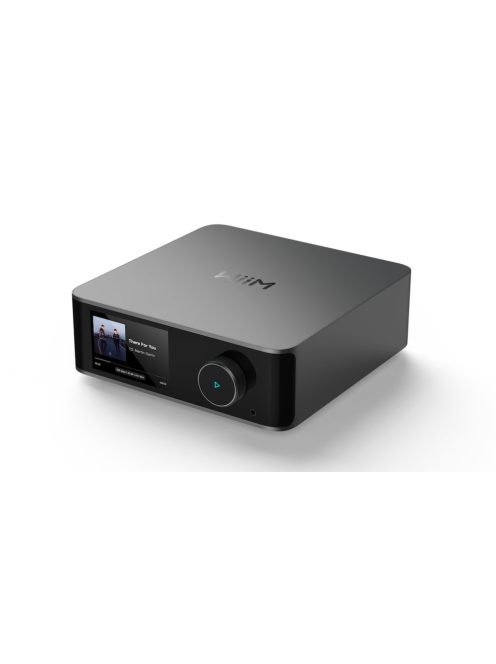

ÚJ Wiim Ultra

Highlights

• Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2

• Latest Wi-Fi 6E and BT 5.3 with two antennas offering rock-solid Bluetooth or Wi-Fi audio streaming

• Elegant aluminum case with 3.5” vibrant touchscreen display covered with glass

• Built-in room correction takes precise acoustic measurements of your room, creating customized corrections for your speaker and subwoofer.

• Stream Hi-Res music with the bit-perfect digital output or high-fidelity analog audio (SNR>120dB, THD+N<0.00018%)

• Versatile streaming options including Spotify Connect, TIDAL Connect, AirPlay 2, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Roon (in cert), and Squeezelite.

• Gapless playback of Hi-Res music up to 24-bit/192 kHz using USB, SPDIF, Coax, Line, and Headphone output.

Detailed Tech Specs

• Audio input

  • Bring your TV audio, recorder player, CD player, or another audio source into the digital world via either analog (RCA, Phono) or digital (Optical, HDMI ARC) port, up to 24-bit/192 kHz

• Audio output

  • Through either analog (RCA, Headphone) or digital (Coax, Optical, USB) for connecting an amplifier or speaker

  • Wireless to another BT, AirPlay or DLNA receiver

  • Up to 192 kHz/ 24-bit, varying sample rate, and bit depth based on the audio source without resampling via Line out, Headphone, USB Coax, and Optical SPDIF

• Line out

  • Maximum output: 2.1V RMS

  • SNR: 121 dB (A-wt)

  • THD+N (1 kHz): 0.00018% (-115 dqB) for 44.1k to 192k

  • FR curve: +/- 0.05 dB

• EQ

  • Tailor your audio experience with versatile and independent EQ settings for each input source – HDMI, Optical, Line, Phono, BT, or Network.

  • Access a robust suite of sound customization options, including 24 preset EQ settings, a 10-band graphic EQ, and an 10-band parametric EQ for precise sound adjustments.

• Subwoofer output

  • Comprehensive bass management.

  • Adjustable crossover frequency, level, phase, and latency.

• 12 V Trigger

  • Automatically turns on your stereo receiver or amplifir

• Connectivity and power

  • 100-240V AC input.

  • Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.

  • Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.

  • Ethernet, 10M/100 Mbps.

• USB Host for Storage

  • Access personal media library and use it as a media server for other WiiM and DLNA devices

• Glass-covered 3.5” vibrant touchscreen display

  • Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings

  • Guides users through the Out-of-Box Experience and firmware updates

  • Provides feedback when there’s a change in the play mode

  • Allows users to customize the wallpaper and display the time and date during standby mode

• Physical

  • Dimensions: 8.1 x 8.1 x 2.9 inches (205 x 205 x 73 mm)

  • Weight: 2.9 pounds (1.3 kg)

  • LED: 4 Color RGBW LED indicates the device status

  • LCD touch screen: 3.5”

  • Volume knob: Adjust volume and play/pause button with glass cover.
