In/Out

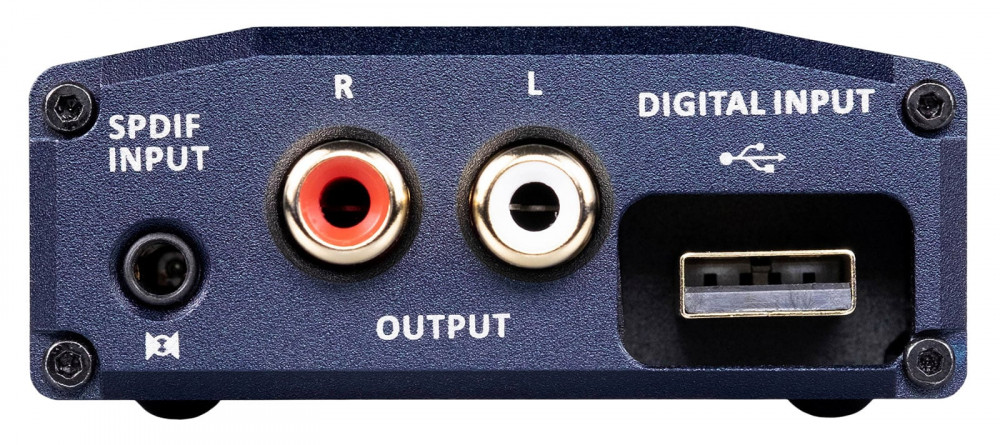

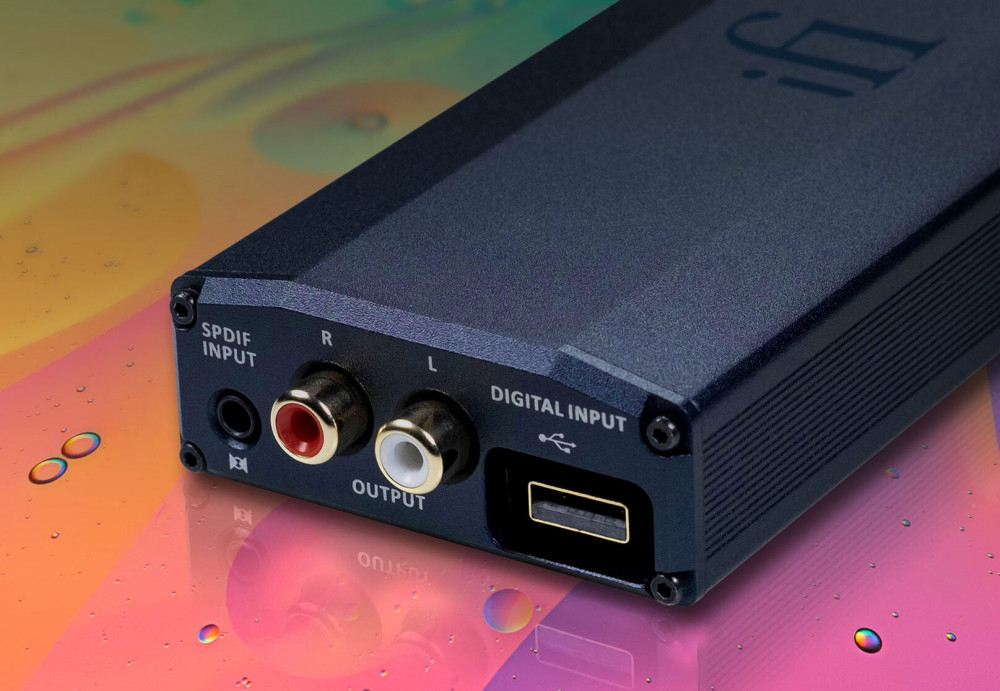

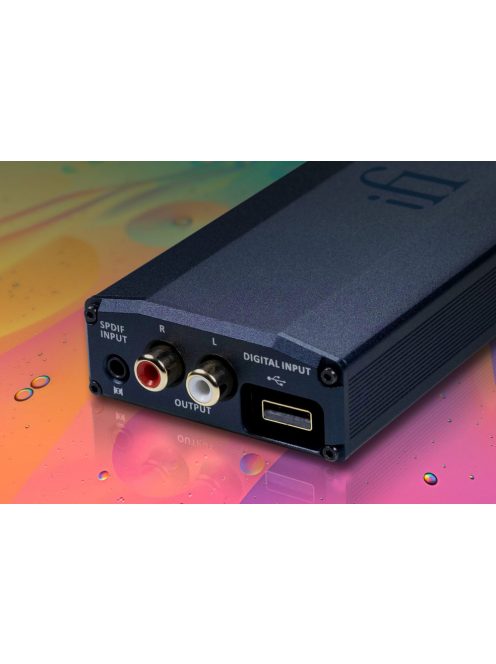

Digital InputsUSB 3.0 type A “OTG” Socket (USB2.0 compatible/with iPurifier® technology built-in)
S/PDIF (3.5m coaxial/optical)OutputS-Balanced: 4.4mm
SE: 6.3mm/RCA
DAC
DACBit-Perfect DSD & DXD, PCM DAC by Dual-core Burr BrownClockUltra low jitter GMT Femtosecond ClockFormatsDSD512/256/128/64,
Octa/Quad/Double/Single-Speed DSD,
DXD (768/705.6/384/352.8kHz),
Double/Single-Speed DXD
PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz)
MQA
Filters
DSDExtreme/Extended/Standard BandwidthPCMBit-Perfect/Minimum-Phase/StandardDXDBit-Perfect Processing
Line Output
Dynamic Range (Line)>117db(A)THD & N (0dBFS Line)<0.003%Output Voltage (Line)>2VOutput Impedance<240ΩJitter (correlated)Below AP2 test set limit
Headphone Power Output
Turbo ModePower (max)10.0V/4,100 mWPower (continuous)>1,560 mW @ 64 Ohm
>166 mW @ 600 OhmNormal modePower (max)5.5V/1,900 mWPower (continuous)>100 mW @ 300 Ohm
>950 mW @ 32 OhmEco modePower (max)2.0V/500 mW @ 8 OhmPower (continuous)>250 mW @ 16 OhmDynamic Range (HP)>115dB(A) (Eco Mode, 2V Out)THD &N (HP 500mW/16R)< 0.008%Output Voltage (HP)>10V (Turbo Mode)Output Impedance<1Ω (iEMatch not engaged)
Maximum Output Power4,100 mW @ 16 Ohm LoadContinuous Output Power1,000 mW @ 64 Ohm Load
Spec
BatteryLithium-polymer 4800mAhPower SystemCharging via USB-C, BC V1.2 compliant up to1500mA charging currentDimensions172 x 67 x 27 mm
6.8" x 2.6" x 1.1"Weight295 g (0.65 Ibs)
